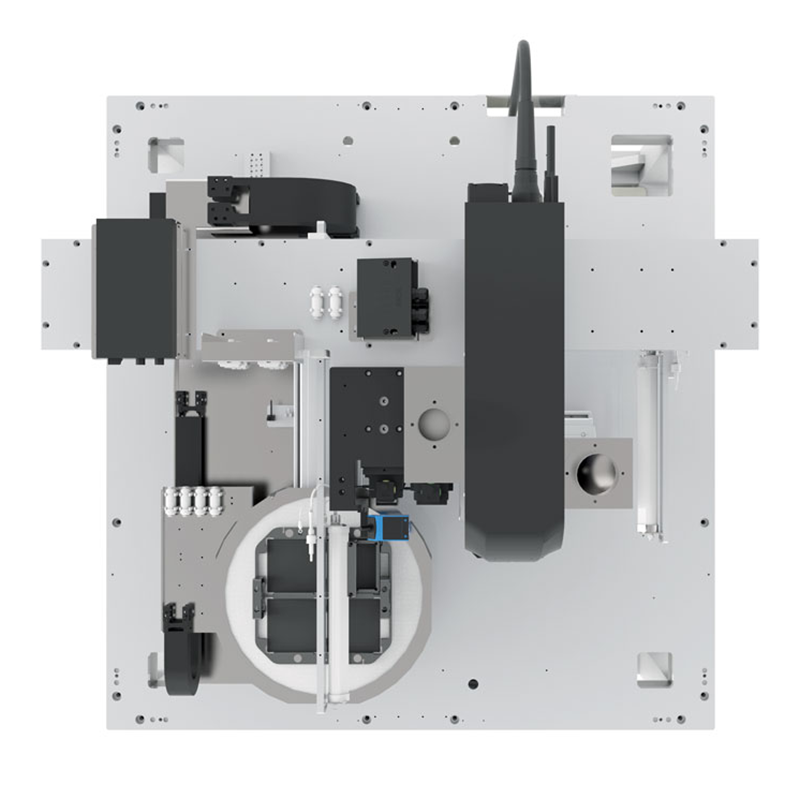

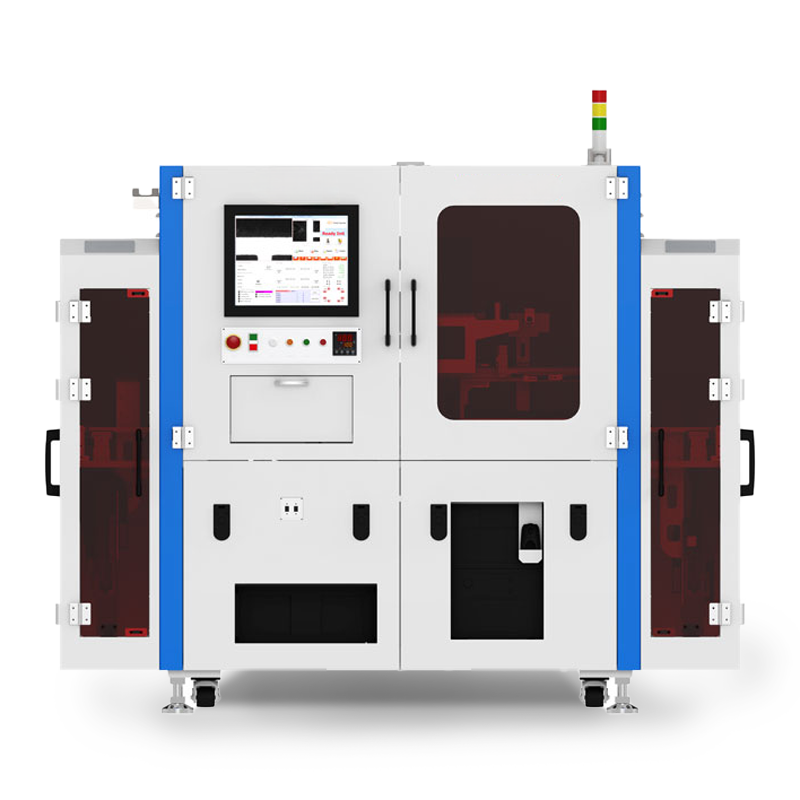

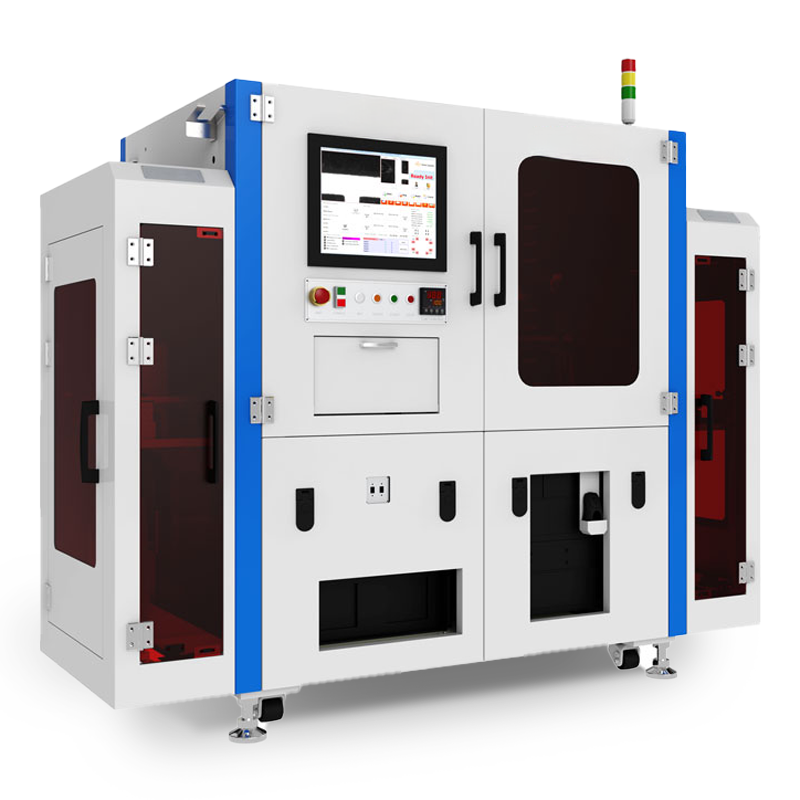

Package Laser Marker
Specification
| Item | Description |
|---|---|
| Target device | Semiconductor package(Saw filter, WIFI module), Chip capacitor, Electrical part |
| Operation items | Laser marking |
| Marking area | 250 X 250mm(changed depend on devices) |
| One-shot coverage | 120 x 120 x 42mm (the minimum letter size – 0.1mm) |
| Laser resolution | 2um |
| Temperature | Room, up to 150℃ |
| Barcode reader | 1D/2D barcode scanning |
| Vision | 1 Top vision, 1 Bottom vision SXGA Mono color[RED & White lamp] Marking inspection, Position, Alignment |
| L/UL | Tray magazine load, 20ea/a magazine, 2 magazines |
| Dimension | W 2,050 x D 1,000 x H 1,650 (mm) |
| Weight | 1,100kg |
