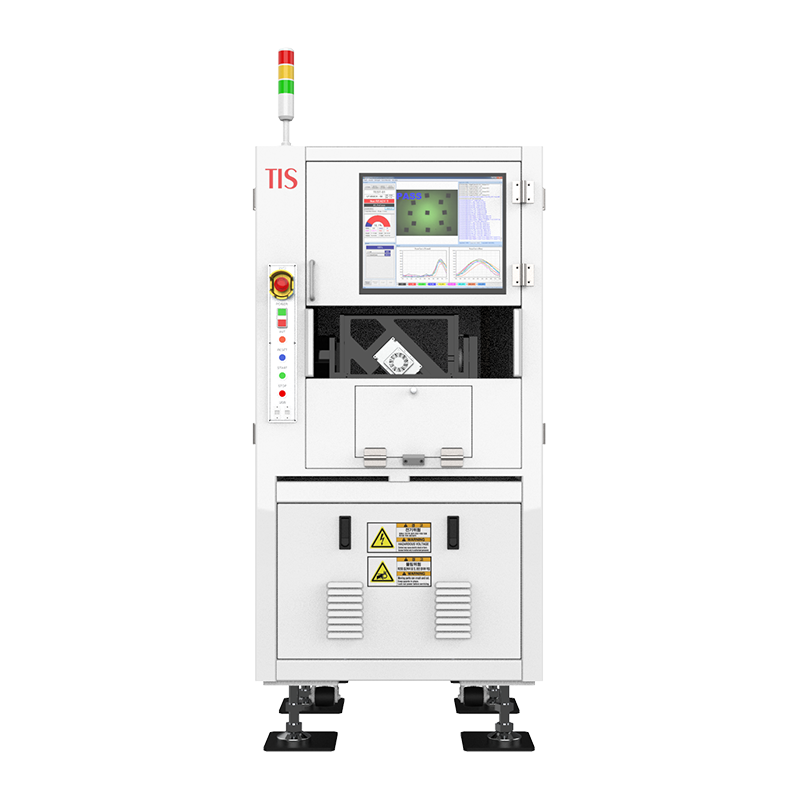

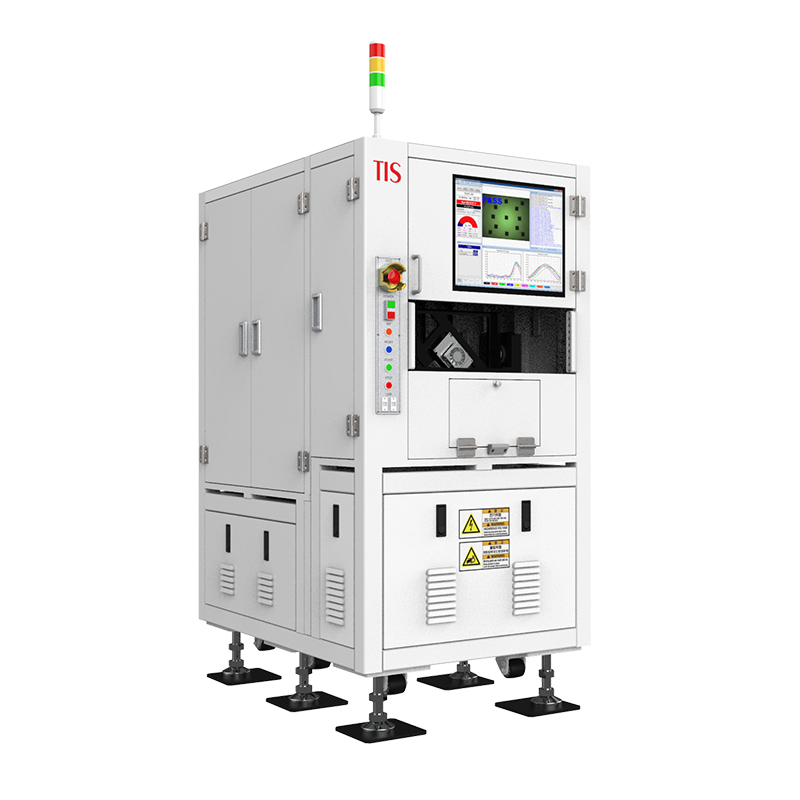

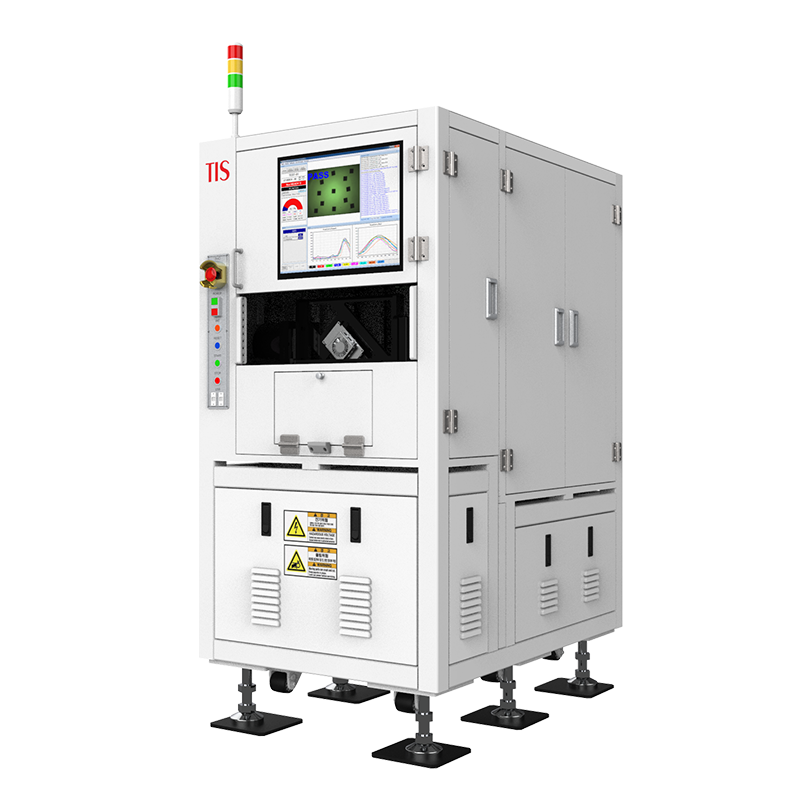

OIS Vibrator
Specification
| System name | OIS Vibrator System |
|---|---|
| Function | OIS test |
| Target device | Triple camera module |
| Socket ↔ Chart Range | Min. 185mm ~ Max. 650mm |
| Socket placing | R Axis & Vibrator 90˚ (DD Motor) |
| Frequency Range | 0 ~ 15Hz |
| Back Light | X , Z Align Stroke ±30mm (Servo + Ball Screw) |
| Y Align Stroke 465mm (Servo + Ball Screw) | |
| Module L/UL method | Manual |
| Socket | 1 Socket |
| Air supply | 5~7 ㎏/㎠ |
| Dimension | W 1,200 X D 2,100 X H 1,700 (mm) |
| Weight | 800kg |
