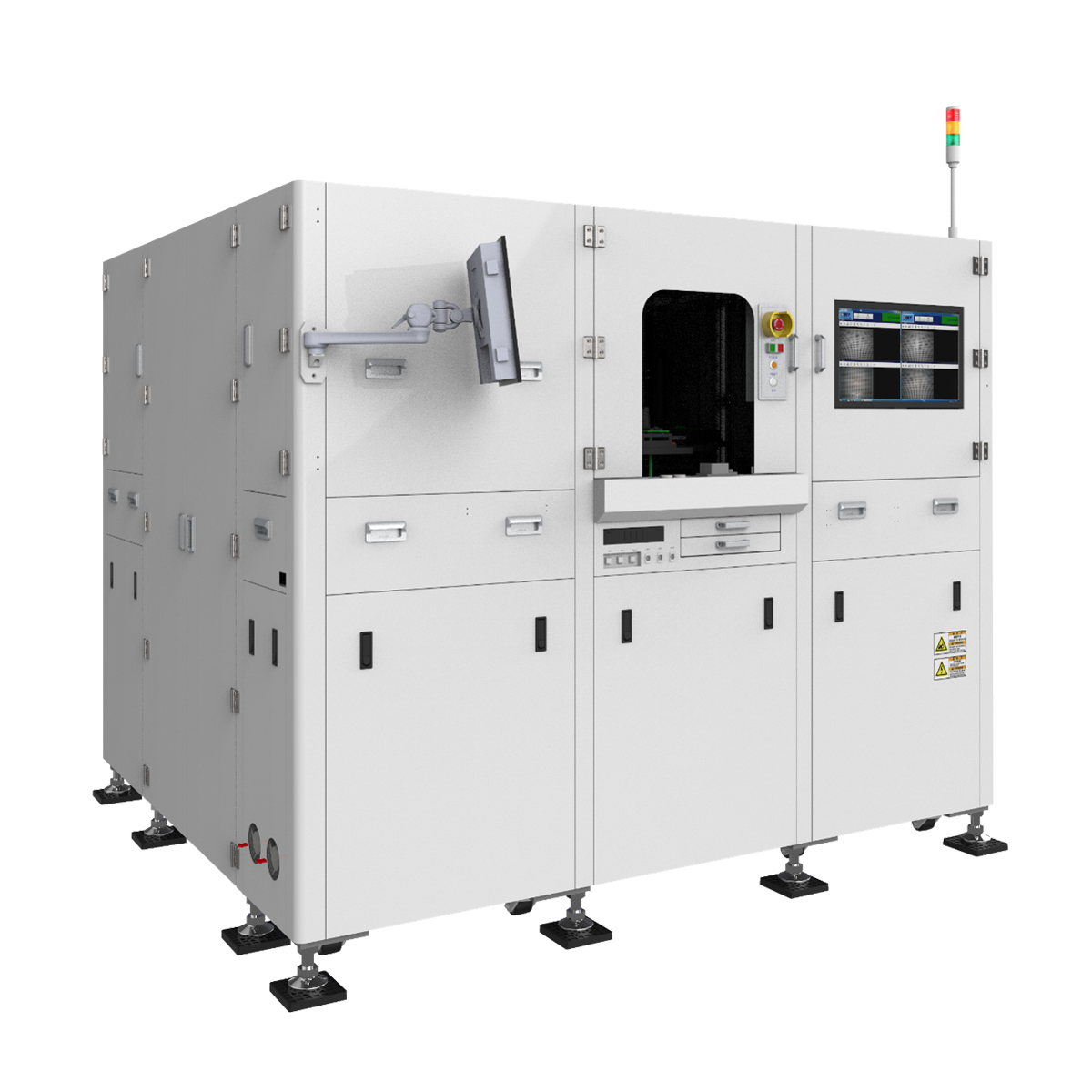

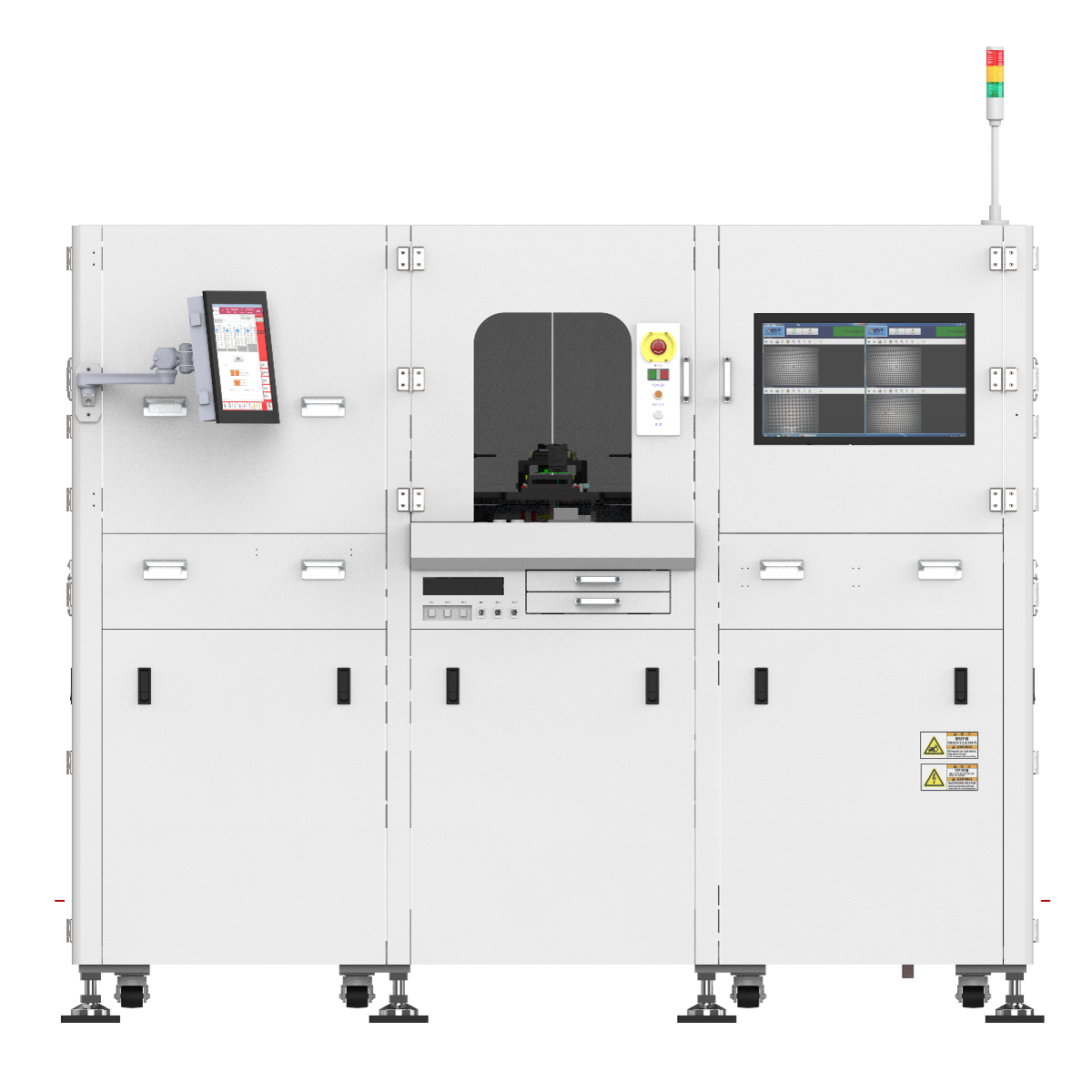

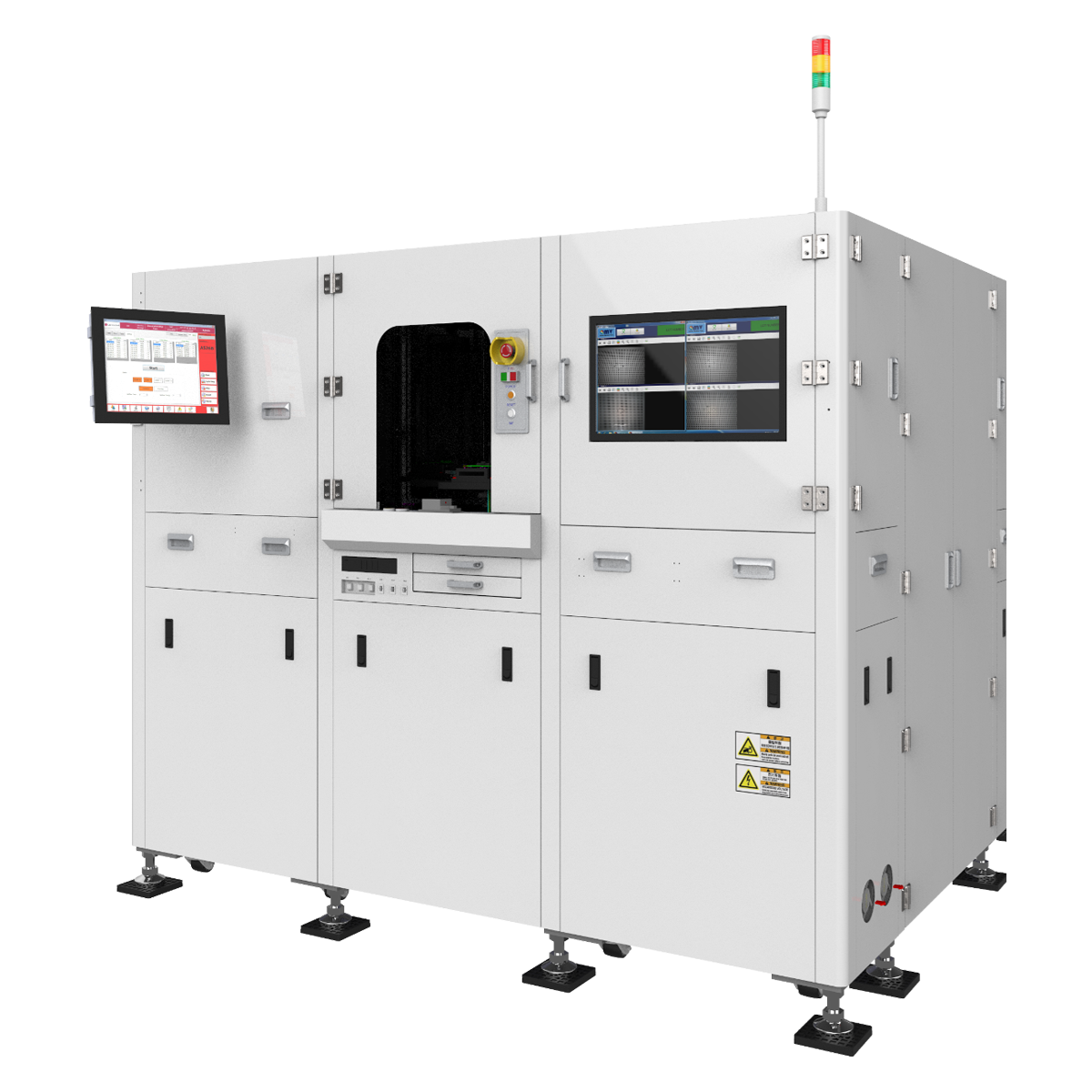

ToF Depth Validation
Specification
| Item | Description |
|---|---|
| Test items | Depth calibration |
| Target device | Autofocus dual camera module |
| Support resolution | Up to 20M pixel sensor |
| Pass line | 1,100 mm |
| Socket/loading method | 4 Sockets / Manual |
| Chart align | Manual |
| BLU | BLU1(tilt) : 830 x 650mm BLU2(tilt) :380 x 305mm BLU3 : 830 x 650mm |
| Chart distance | BLU1(tilt) : 500mm BLU2(tilt) : 200mm tilt BLU3 : 500mm |
| Air supply | 0.5Mpa ~ 0.7Mpa |
| Dimension | W 2,435 x D 2,100 x H 2,000 (mm) |
| Weight | 2,000kg |
