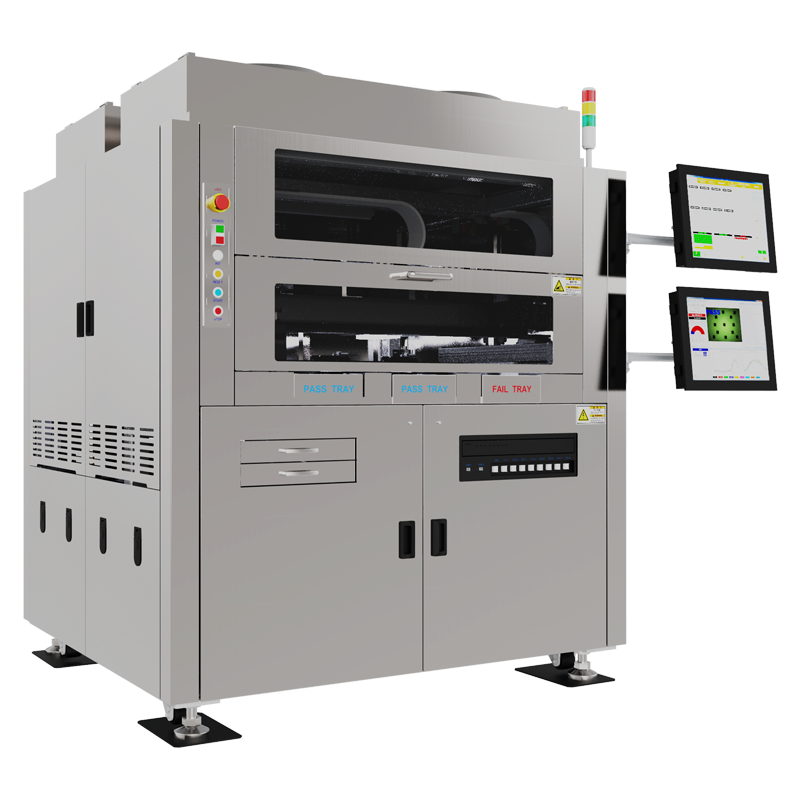

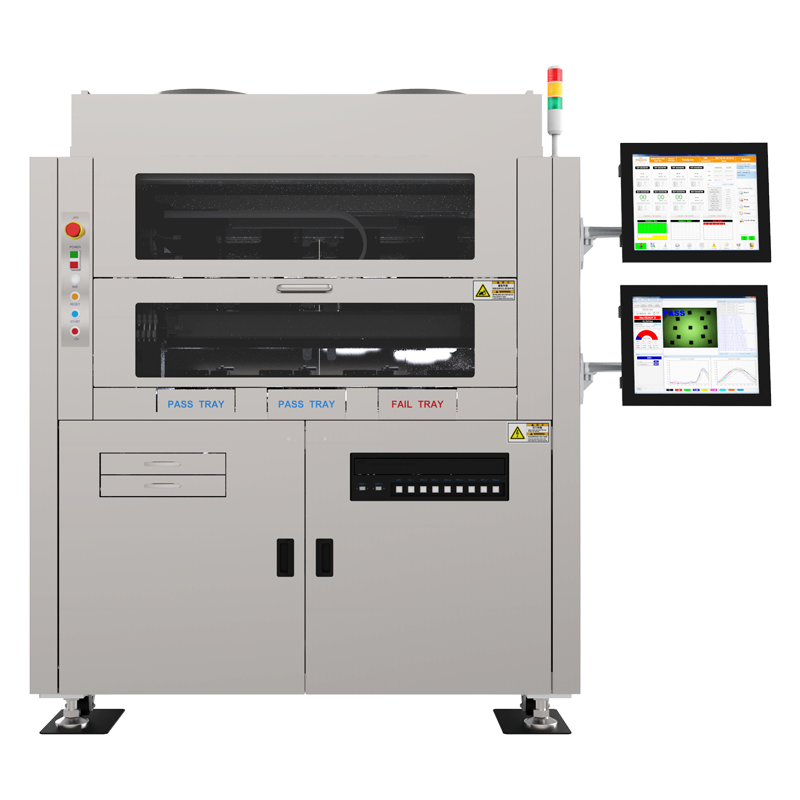

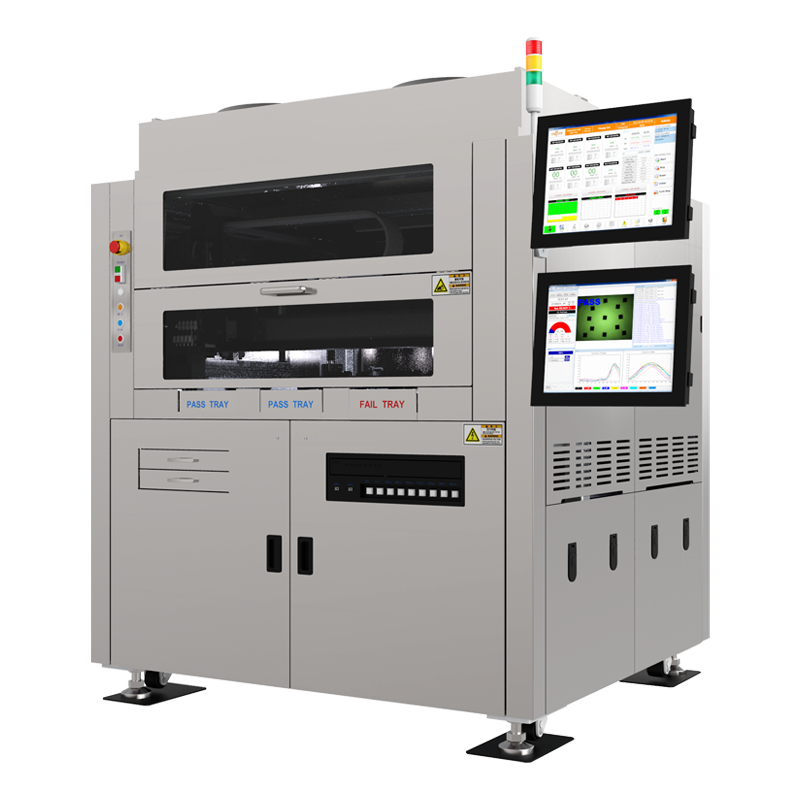

VCM Pre-focus Test
Specification
| Item | Description |
|---|---|
| Test items | Focus test (AFA & lens test) |
| Target device | VCM AF unit (actuator + lens) |
| Support resolution | Up to 20M pixel sensor |
| Configuration for test | 4 Relay lens(Collimator lens), 4 LED BLU |
| Configuration for motion | 25 Axis Motion, 2 Visions |
| Port/Socket | 4 Ports / 8 Sockets |
| Loading/Unloading | Automatic P& P, 5 Pickers, Tray based |
| Chart align | Automatic |
| Dimension | W 1,590 x D 1,440 x H 1,920 (mm) |
| Weight | 1,100kg |
